🌍 Worldgen Feature

Introduction

Worldgen features are used to generate natural structures like trees, ores, flowers, and grass in the game.

There are two core concepts:

Concept	What it controls	Example
Configured Feature	What a single feature looks like.	The shape of a tree — trunk height, leaf shape, etc.
Placed Feature	How that feature appears in the world.	Which biomes, how rare, how many attempts per chunk.

Using the Datapack Generator

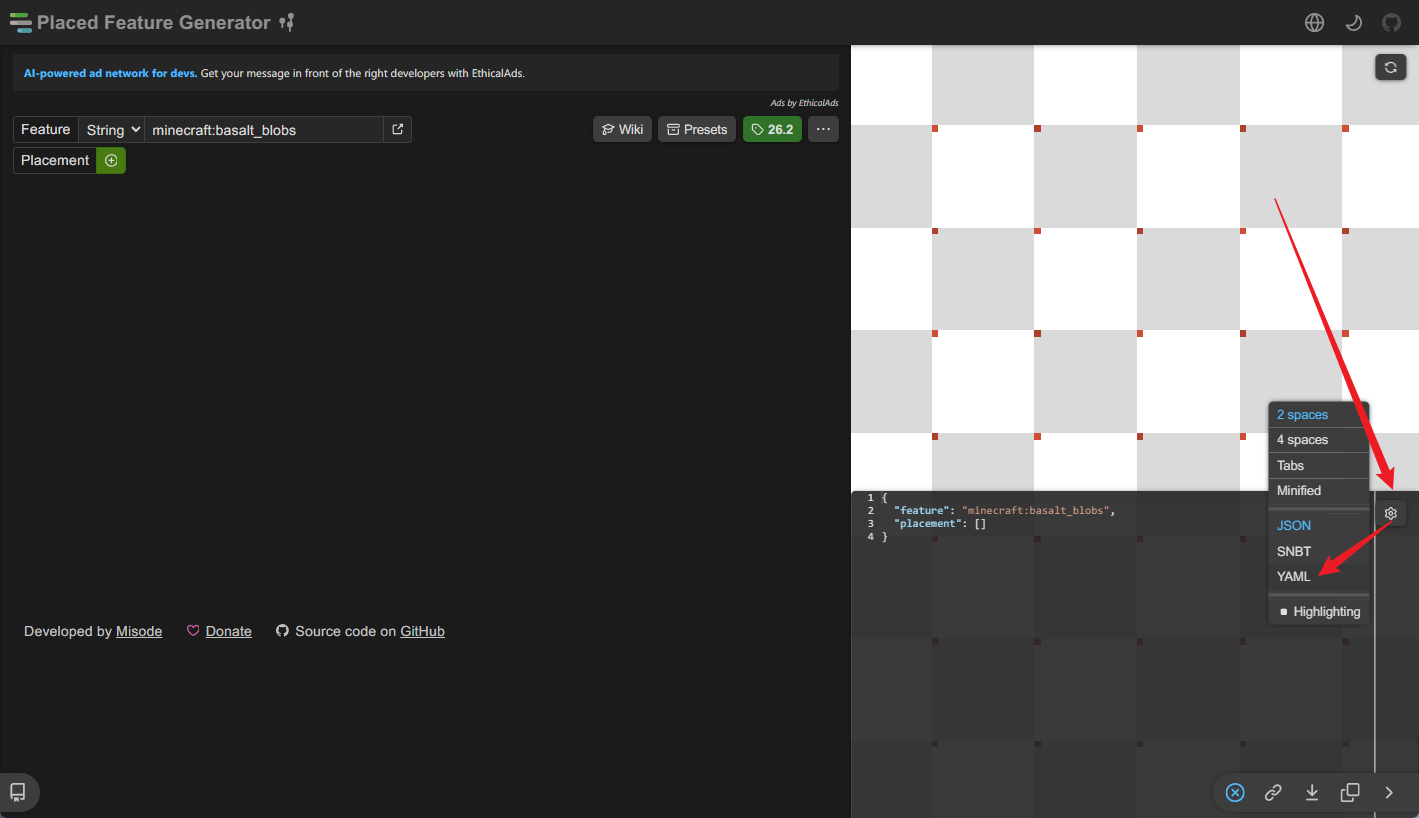

To create a CraftEngine worldgen configuration, you should use a datapack generator. Writing these configurations by hand is usually not practical — the chance of getting the syntax wrong is very high. Start by opening misode's generator, then switch the output format to YAML.

Understanding the Structure

The first thing to do after opening the generator is to set it to your server's Minecraft version. Version mismatch is one of the most common reasons why a feature does not work.

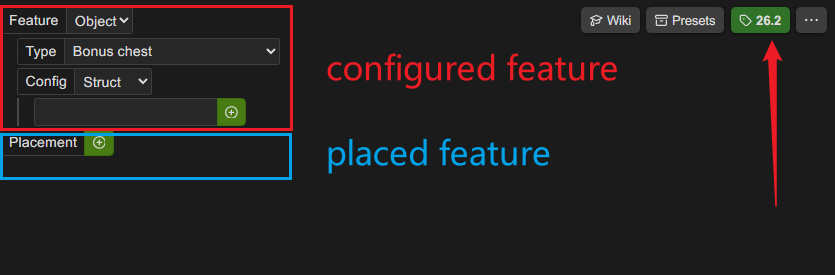

A placed feature has two root keys:

• feature — the configured feature. It can be a string that references another configured feature, or an object that defines the configured feature directly.
• placement — the placed feature part. It controls how and where the feature is generated.

String vs. object

Use a string when you want to reuse the same configured feature in multiple placed features. For example, you might have one palm tree configured feature, but place it differently on beaches and in jungles.

placed_feature.yml

placed_features:
  default:palm_tree_beach:
    feature: default:palm_tree
    placement:
      - type: 'minecraft:rarity_filter'
        chance: 7

Use an object when the configured feature is only used once, or when you do not want to maintain a separate configured feature entry.

placed_feature.yml

placed_features:
  default:fairy_flower:
    feature:
      type: 'minecraft:simple_block'
      config:
        to_place:
          type: 'minecraft:simple_state_provider'
          state:
            Name: 'default:fairy_flower'
    placement:
      - type: 'minecraft:rarity_filter'
        chance: 100

You can also define configured features separately under the configured_feature key, and reference them by ID from placed features.

For the configured feature itself, use misode's configured feature generator.

---

Configured Features

You can use CraftEngine block IDs anywhere vanilla block IDs are accepted.

Custom block support

• In block states:

  Name: 'default:palm_log'
  Properties:
    axis: 'y'

• In block predicates:

  blocks: 'default:topaz_ore'

  Or as a list:

  blocks:
    - 'default:ore_a'
    - 'minecraft:stone'

CraftEngine providers and feature types

When a custom block does not work with a vanilla provider, try the CraftEngine equivalents:

Type	Use case
craftengine:simple_block	Alternative to minecraft:simple_block for custom blocks.
craftengine:simple_state_provider	Same layout as minecraft:simple_state_provider, but supports custom block IDs.
craftengine:weighted_state_provider	Same layout as minecraft:weighted_state_provider, but supports custom block IDs.
craftengine:rotated_block_provider	Same layout as minecraft:rotated_block_provider, but supports custom block IDs.
craftengine:randomized_int_state_provider	Same layout as minecraft:randomized_int_state_provider, but supports custom block IDs.

Example

configured_feature.yml

configured_feature:
  default:palm_tree:
    type: 'minecraft:tree'
    config:
      trunk_provider:
        type: 'craftengine:simple_state_provider'
        state:
          Name: 'default:palm_log'
          Properties:
            axis: 'y'

---

Placed Features

These top-level fields restrict where the feature can generate:

Field	Accepted values	Effect
world	List of exact world names	Only generate in the listed worlds.
dimension	List of dimension registry keys, e.g. minecraft:overworld	Only generate in the listed dimensions.
dimension_type	List of dimension-type registry keys, e.g. minecraft:overworld, minecraft:the_end	Only generate in the listed dimension types.
biome	List of biome registry keys, e.g. minecraft:beach	Only generate in the listed biomes. Requires the minecraft:biome placement modifier in placement.

Example

placed_feature.yml

placed_features:
  default:palm_tree:
    biome:
      - minecraft:beach
    dimension_type:
      - minecraft:overworld
    feature: default:palm_tree
    placement:
      - type: 'minecraft:rarity_filter'
        chance: 7
      - type: 'minecraft:heightmap'
        heightmap: WORLD_SURFACE
      - type: 'minecraft:biome'

---

Practical Guide: Ore Generation

This section shows how to configure an ore feature from start to finish. The example below puts the configured feature directly inside the placed feature, which is the most common way to write it.

Example

features.yml

placed_features:
  default:topaz_ore:
    dimension_type:
      - 'minecraft:overworld'
    feature:
      type: 'minecraft:ore'
      config:
        discard_chance_on_air_exposure: 0.0
        size: 10
        targets:
          - state:
              Name: 'default:topaz_ore'
            target:
              predicate_type: 'minecraft:tag_match'
              tag: 'minecraft:stone_ore_replaceables'
          - state:
              Name: 'default:deepslate_topaz_ore'
            target:
              predicate_type: 'minecraft:tag_match'
              tag: 'minecraft:deepslate_ore_replaceables'
    placement:
      - type: 'minecraft:count'
        count: 4
      - type: 'minecraft:in_square'
      - type: 'minecraft:height_range'
        height:
          type: 'minecraft:uniform'
          min_inclusive:
            absolute: -32
          max_inclusive:
            absolute: 112

How to tune it

1. Open misode's placed feature generator and switch to your server's Minecraft version.
2. In the feature field, choose ore and fill in the block states you want to place.
3. In the placement field, set:
   • count for attempts per chunk.
   • in_square to scatter horizontally.
   • height_range for the vertical range.
   • Optionally, biome to restrict by biome (requires a top-level biome list).
4. Switch the output to YAML and paste it under placed_features in your CraftEngine files.

If you want to reuse the same ore configuration in multiple placed features, you can define it separately under configured_feature and reference it with a string ID.
